Self-learning Remote Control


Model No. RMC-295SL

Self-learning Fixed code remote control


Model No. RMC-195SL

Self-learning Fixed code remote control


Model No. RMC-600(LRT-1)

Self-learning Fixed code remote control


Model No. RMC-610

Self-learning Fixed code remote control


Model No. Y2K10L

Self-learning Fixed code remote control


Model No. RMC-611

Self-learning Fixed code remote control


Model No. RMC-168SL

Self-learning Fixed code remote control


Model No. RMC-235SL

Self-learning Fixed code remote control


Model No. RMC-255SL

Self-learning Fixed code remote control


Model No. RMC-611CL

Self-learning Fixed code remote control


Model No. RMC-680CH

Self-learning 2-IN-1 Hopping code & Fixed code remote control


Model No. RMC-611CH

Self-learning 2-IN-1 Hopping code & Fixed code remote control


Model No. RMC-255CHML

Self-learning 2-IN-1 Hopping code & Fixed code (Programmable) remote control


Model No. RMC-285CHML

Self-learning 2-IN-1 Hopping code & Fixed code (Programmable) remote control

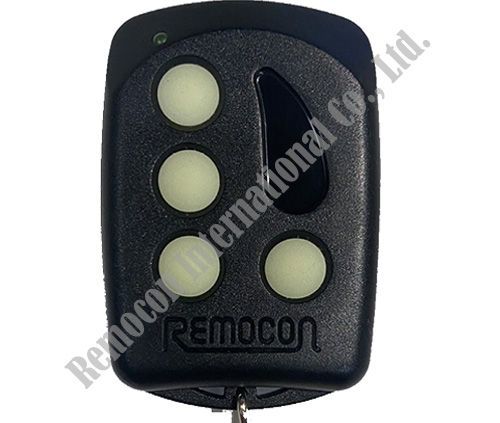

Model No. RMC-295SL

Self-learning Fixed code remote control


Type: L

Feature & Application:

  • With a groove design on the front case for better grip.
  • Special buttons design to prevent the buttons from being pressed accidently.
  • For fixed code duplication(A type).
  • Support up to total 10 channels by pressing different buttons combination.
  • Copy remotes face to face easily.
  • No need to open case when duplicating.

Specification:

FrequencyFixed freq.(434MHz)
Dimension55.5mmL x 38mmW x 13.5mmT
Button number4
Battery23A-12V
LED light color??

Packing & MOQ:

Bulk packing20pcs/inner box; 360pcs/CTN; N.W.: ??kgs; G.W.: ??kgs.
MOQ360pc

Support/Download:

Close

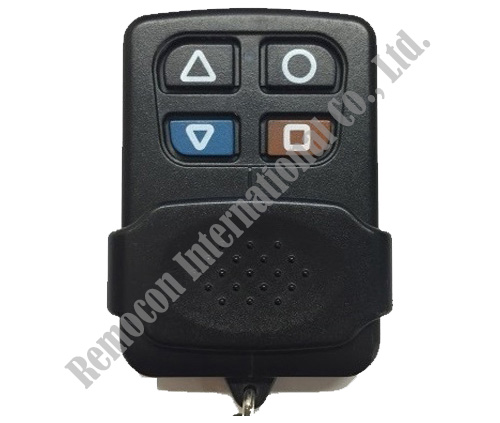

Model No. RMC-195SL

Self-learning Fixed code remote control


Type: L

Feature & Application:

  • Sliding cover to prevent the buttons from being pressed accidently.
  • Buttons printed with functional icon(for garage door).
  • Ultra-thin design.
  • For fixed code duplication(A type).
  • Support up to total 10 channels by pressing different buttons combination.
  • Copy remotes face to face easily.
  • No need to open case when duplicating.

Specification:

FrequencyFixed freq.(434MHz)
Dimension49mmL x 38mmW x 9mmT
Button number4
BatteryCR2032-3V
LED light colorOrange

Packing & MOQ:

Bulk packing24pcs/inner box; 432pcs/CTN; N.W.:10.5kgs; G.W.: 11kgs.
MOQ432pc

Support/Download:

Close

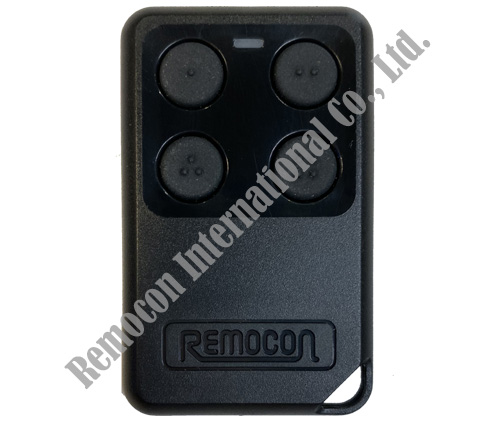

Model No. RMC-285CHML

Self-learning 2-IN-1 Hopping code & Fixed code (Programmable) remote control


Type: CHML

Feature & Application:

  • For Hopping(Rolling) code & Fixed code duplication.
  • Support remotes with FSK modulation.
  • Support one button self-programming to the receiver.
  • Copy(program) code and frequency at the same time. No need to adjust the frequency.
  • Support up to total 8 channels by pressing different buttons combination.
  • Copy remotes face to face or progrmmed via duplicator HCD-900.
  • W/ Black button.

Specification:

FrequencyMulti-freq.(1: 270~378MHz; 2: 403~440MHz; 3: 868.3MHz)
Dimension60mmL x 37mmW x 10mmH
Button number4
BatteryCR2032-3V
LED light colorRed + Green = Orange

Packing & MOQ:

Bulk packing 26pcs/inner box; 468pcs/CTN; N.W.: 13.5kgs; G.W.: 14kgs.
MOQ468pcs

Support/Download:

Close

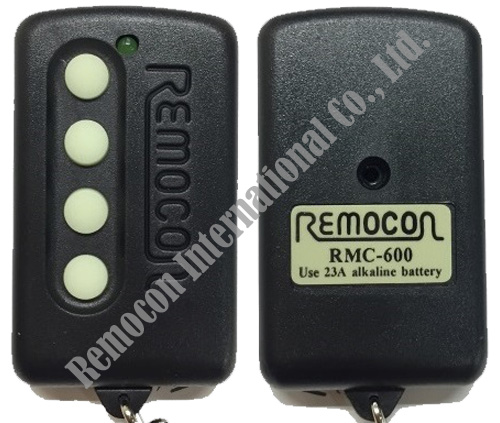

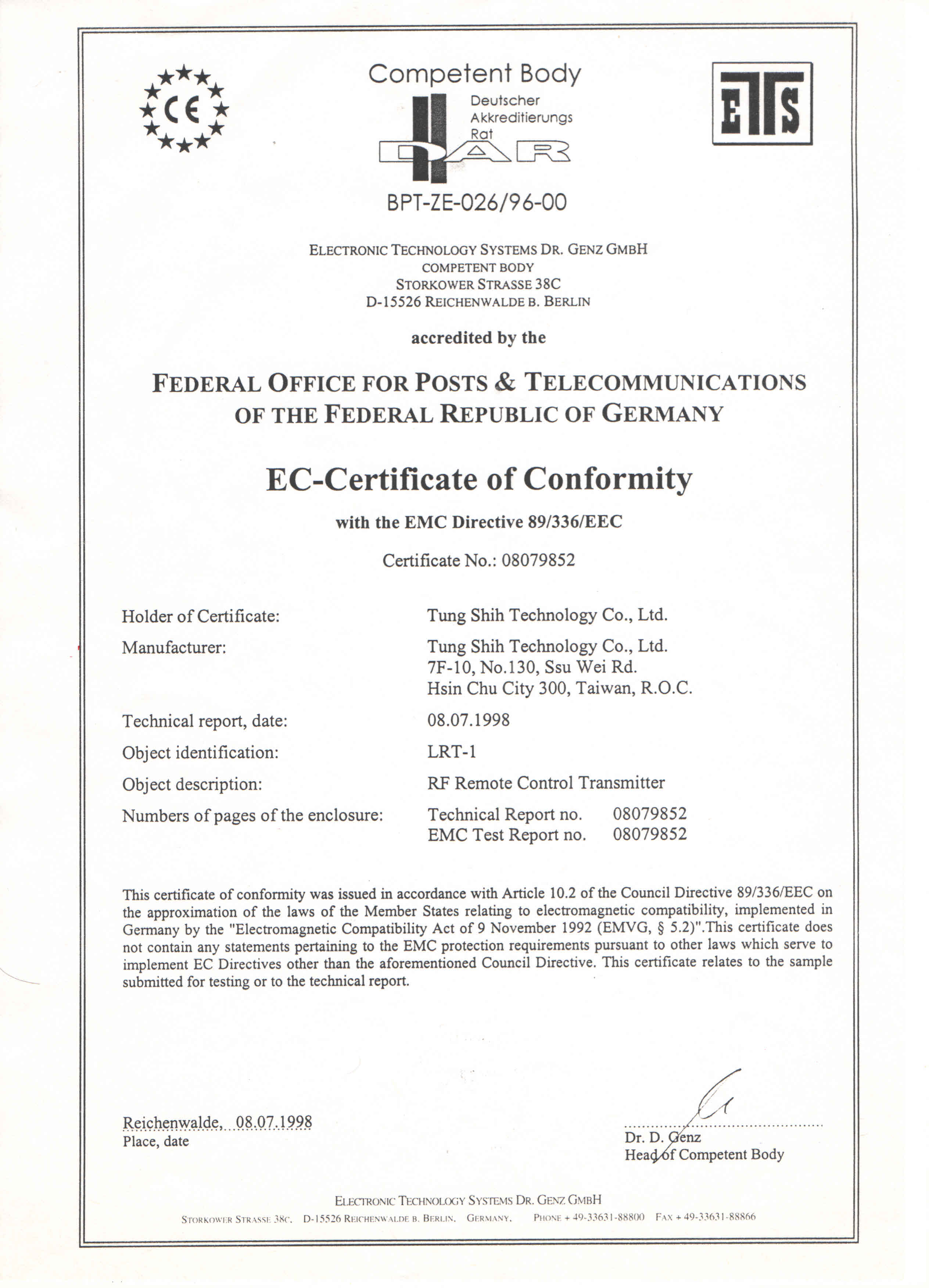

Model No. RMC-600(LRT-1)

Self-learning Fixed code remote control


Type: L

Feature & Application:

  • Heavy-duty.
  • Basic type with low cost.
  • For fixed code duplication(A type).
  • Support up to total 10 channels by pressing different buttons combination.
  • Copy remotes face to face easily.

Specification:

FrequencyAdjustable freq.
Dimension58mmL x 35mmW x 14mmT
Button number4
Battery23A-12V
LED light colorGreen

Packing & MOQ:

Bulk packing20pcs/inner box; 360pcs/CTN; N.W.:13kgs; G.W.: 13.5kgs.
Bulk packing MOQ360pcs
Blister card packing20pcs/inner box; 200pcs/CTN; 11kgs; 11.5kgs.
Blister card packing MOQ400pcs
Supplied with a small frequency tuning bar

Support/Download:

Close

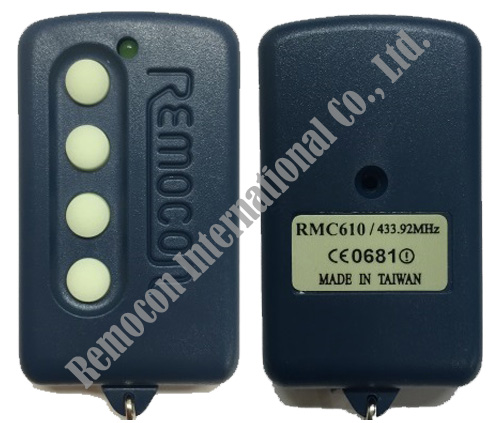

Model No. RMC-610

Self-learning Fixed code remote control


Type: L

Feature & Application:

  • Heavy-duty.
  • Basic type with low cost.
  • For fixed code duplication(A type).
  • Support up to total 10 channels by pressing different buttons combination.
  • Copy remotes face to face easily.
  • No need to open case when duplicating.

Specification:

FrequencyFixed freq.(434MHz)
Dimension58mmL x 35mmW x 14mmT
Button number4
Battery23A-12V
LED light colorGreen

Packing & MOQ:

Bulk packing20pcs/inner box; 360pcs/CTN; N.W.:13kgs; G.W.: 13.5kgs.
MOQ360pcs

Support/Download:

Close

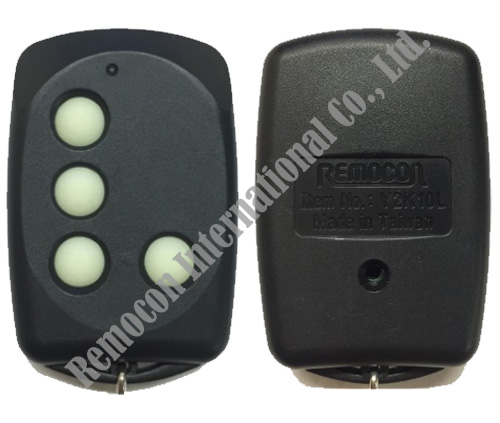

Model No. Y2K10L

Self-learning Fixed code remote control


Type: L

Feature & Application:

  • Water-resistant design.
  • Special buttons design to prevent the buttons from being pressed accidently.
  • For fixed code duplication(A type).
  • Support up to total 10 channels by pressing different buttons combination.
  • Copy remotes face to face easily.
  • Without REMOCON logo on the front case.
  • Other case colors are available.

Specification:

FrequencyAdjustable freq.
Dimension58mmL x 38mmW x 14mmT
Button number4
Battery23A-12V
LED light colorGreen

Packing & MOQ:

Bulk packing20pcs/inner box; 360pcs/CTN; N.W.:12.5kgs; G.W.: 13kgs.
MOQ360pcs
Supplied with a small frequency tuning bar

Support/Download:

Close

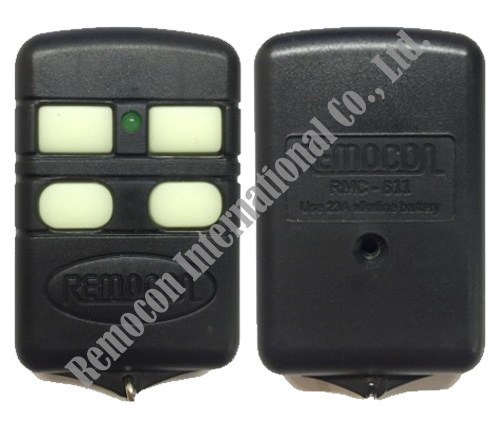

Model No. RMC-611

Self-learning Fixed code remote control


Type: L

Feature & Application:

  • For fixed code duplication(A type).
  • Support up to total 10 channels by pressing different buttons combination.
  • Copy remotes face to face easily.
  • No need to open case when duplicating.

Specification:

FrequencyFixed freq.(434MHz)
Dimension57mmL x 35mmW x 13mmT
Button number4
Battery23A-12V
LED light colorGreen

Packing & MOQ:

Bulk packing20pcs/inner box; 360pcs/CTN; N.W.:11.5kgs; G.W.: 12kgs.
MOQ360pcs

Support/Download:

Close

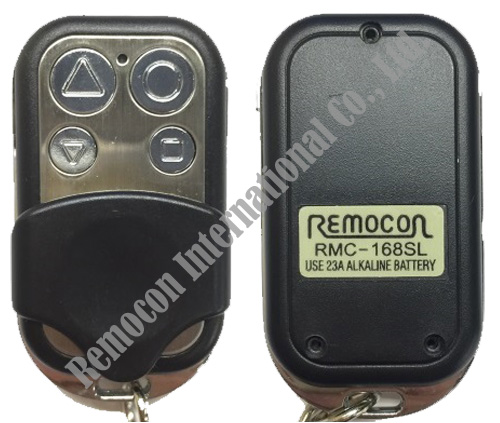

Model No. RMC-168SL

Self-learning Fixed code remote control


Type: L

Feature & Application:

  • Sliding cover to prevent the buttons from being pressed accidently.
  • Buttons with functional icon(2 choices: for car & for garage door).
  • Metal frame & panel.
  • For fixed code duplication(A type).
  • Support up to total 10 channels by pressing different buttons combination.
  • Copy remotes face to face easily.
  • No need to open case when duplicating.
  • Other case colors are available.

Specification:

FrequencyFixed freq.(434MHz)
Dimension57mmL x 32mmW x 13mmT
Button number4
Battery23A-12V
LED light colorRed

Packing & MOQ:

Bulk packing18pcs/inner box; 324pcs/CTN; N.W.:13.5kgs; G.W.: 14kgs.
MOQ324pcs

Support/Download:

Close

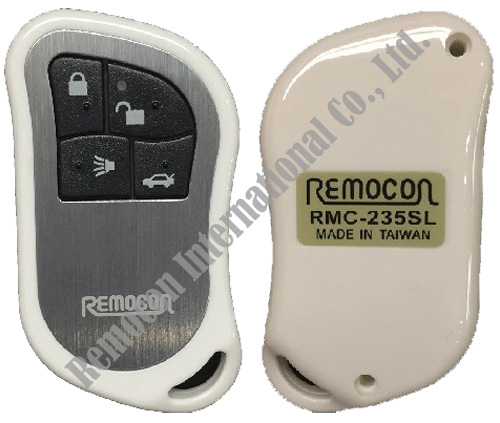

Model No. RMC-235SL

Self-learning Fixed code remote control


Type: L

Feature & Application:

  • Buttons printed with functional icon(for car).
  • With metal-like panel(4 colors are available)
  • For fixed code duplication(A type).
  • Support up to total 10 channels by pressing different buttons combination.
  • Copy remotes face to face easily.
  • No need to open case when duplicating.

Specification:

FrequencyFixed freq.(434MHz)
Dimension67mmL x 38mW x 16mmT
Button number4(different shape)
Battery23A-12V
LED light colorRed

Packing & MOQ:

Bulk packing16pcs/inner box; 288pcs/CTN; N.W.:10.5kgs; G.W.: 11kgs.
MOQ288pcs

Support/Download:

Close

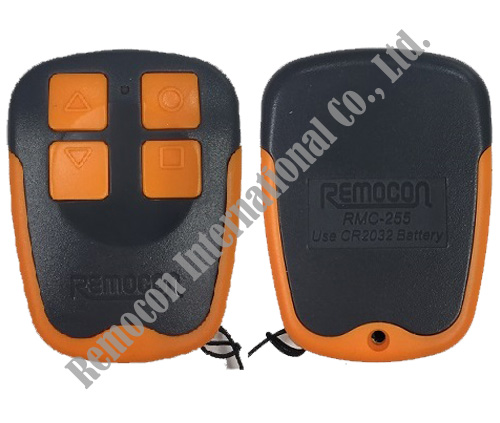

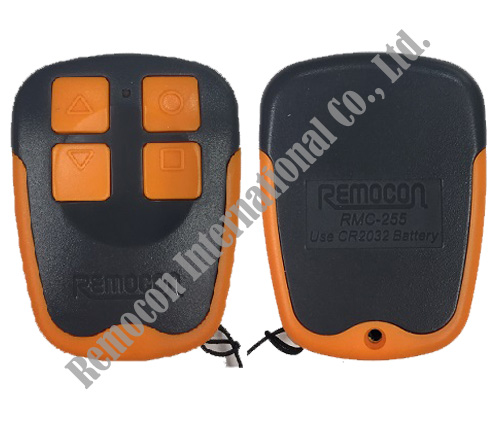

Model No. RMC-255SL

Self-learning Fixed code remote control


Type: L

Feature & Application:

  • Buttons with functional icon( for garage door).
  • For fixed code duplication(A type).
  • Support up to total 10 channels by pressing different buttons combination.
  • Copy remotes face to face easily.
  • No need to open case when duplicating.

Specification:

FrequencyFixed freq.(434MHz)
Dimension57mmL x 43mmW x 13mmH
Button number4
BatteryCR2032-3V
LED light colorOrange

Packing & MOQ:

Bulk packing15pcs/inner box; 270pcs/CTN; N.W.:5.5kgs; G.W.: 6kgs.
MOQ270pcs

Support/Download:

Close

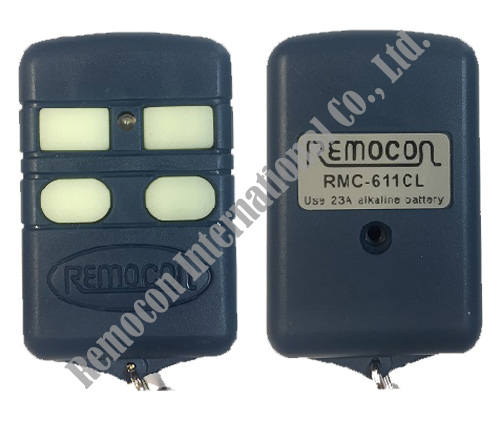

Model No. RMC-611CL

Self-learning Fixed code remote control


Type: CL

Feature & Application:

  • For fixed code duplication(C type).
  • Support up to total 8 channels by pressing different buttons combination.
  • Copy remotes face to face easily.
  • No need to open case when duplicating.

Specification:

FrequencyFixed freq.(434MHz)
Dimension57mmL x 35mmW x 13mmT
Button number4
Battery23A-12V
LED light colorGreen

Packing & MOQ:

Bulk packing20pcs/inner box; 360pcs/CTN; N.W.:11.5kgs; G.W.: 12kgs.
MOQ360pcs

Support/Download:

Close

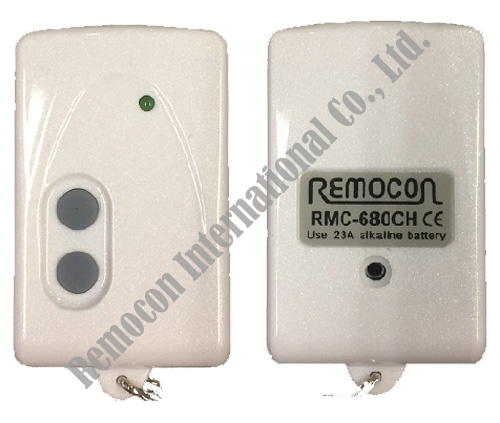

Model No. RMC-680CH

Self-learning 2-IN-1 Hopping code & Fixed code remote control


Type: CHL

Feature & Application:

  • For Quartzed remote(C type & Hopping) duplication.
  • Support up to total 3 channels by pressing different buttons combination.
  • Copy remotes face to face easily.
  • Without REMOCON logo on the front case.
  • Other case colors are available.

Specification:

FrequencySpecific(26.000MHz to 42.195MHz)
Dimension56mmL x 35mmW x 14mmT
Button number2
Battery23A-12V
LED light colorBlue

Packing & MOQ:

Bulk packing20pcs/inner box; 360pcs/CTN; N.W.:13.5kgs; G.W.: 14kgs.
MOQ360pcs
Supplied with a small frequency tuning bar

Support/Download:

Close

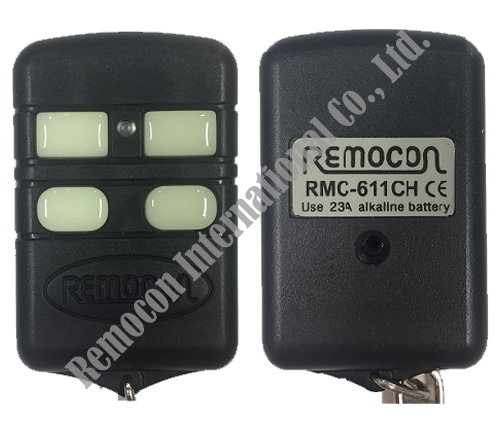

Model No. RMC-611CH

Self-learning 2-IN-1 Hopping code & Fixed code remote control


Type: CHL

Feature & Application:

  • For Hopping(Rolling) code & fixed code duplication(C type).
  • Support one button self-programming to the receiver.
  • Support up to total 8 channels by pressing different buttons combination.
  • Copy remotes face to face easily.
  • No need to open case when duplicating.

Specification:

FrequencyFixed freq.(434MHz)
Dimension57mmL x 35mmW x 13mmT
Button number4
Battery23A-12V
LED light colorBlue

Packing & MOQ:

Bulk packing20pcs/inner box; 360pcs/CTN; N.W.:11.5kgs; G.W.: 12kgs.
MOQ360pcs

Support/Download:

Close

Model No. RMC-255CHML

Self-learning 2-IN-1 Hopping code & Fixed code (Programmable) remote control


Type: CHML

Feature & Application:

  • Buttons with functional icon( for garage door).
  • Just remove the bottom cover and can access to the Micro USB port easily.
  • For Hopping(Rolling) code & Fixed code duplication.
  • Support remotes with FSK modulation.
  • Support one button self-programming to the receiver.
  • Copy(program) code and frequency at the same time. No need to adjust the frequency.
  • Support up to total 8 channels by pressing different buttons combination.
  • Copy remotes face to face or progrmmed via duplicator HCD-900.

Specification:

FrequencyMulti-freq.(1: 270~378MHz; 2: 403~440MHz; 3: 868.3MHz)
Dimension57mmL x 43mmW x 13mmH
Button number4
BatteryCR2032-3V
LED light colorRed + Green = Orange

Packing & MOQ:

Bulk packing15pcs/inner box; 270pcs/CTN; N.W.:5.5kgs; G.W.: 6kgs.
MOQ270pcs

Support/Download:

Close
