Multi Frequency Remote Control


Model No. RMC-166HM

Hopping code programamble remote control


Model No. RMC-166CHM

2-IN-1 Hopping code & C type Fixed code programamble remote control


Model No. RMC-285CHM

2-IN-1 Hopping code & C type Fixed code programamble remote control


Model No. RMC-255CHML

Self-learning 2-IN-1 Hopping code & Fixed code (Programmable) remote control


Model No. RMC-285CHML

Self-learning 2-IN-1 Hopping code & Fixed code (Programmable) remote control


Model No. RMC-165CM

C type Fixed code Programmable remote control


Model No. RMC-275CM

C type Fixed code Programmable remote control


Model No. RMC-285CM

C type Fixed code Programmable remote control

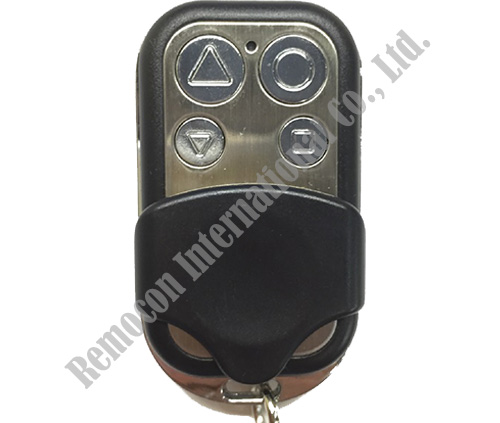

Model No. RMC-166HM

Hopping code programamble remote control


Type: HM

Feature & Application:

  • Sliding cover to prevent the buttons from being pressed accidently.
  • Buttons with functional icon(2 choices: for car & for garage door).
  • Metal frame & panel.
  • For Hopping(Rolling) code duplication.
  • Program code and frequency at the same time. No need to adjust the frequency.
  • Support up to total 10 channels by pressing different buttons combination.
  • Copied via duplicator HCD-900.
  • Other case colors are available.

Specification:

FrequencyMulti-freq.(272MHz to 434MHz)
Dimension57mmL x 32mmW x 13mmH
Button number4
BatteryCR2032-3V
LED light colorBlue

Packing & MOQ:

Bulk packing18pcs/inner box; 324pcs/CTN; N.W.: 12kgs; G.W.: 12.5kgs.
MOQ324pcs

Support/Download:

Close

Model No. RMC-166CHM

2-IN-1 Hopping code & C type Fixed code programamble remote control


Type: CHM

Feature & Application:

  • Sliding cover to prevent the buttons from being pressed accidently.
  • Buttons with functional icon(2 choices: for car & for garage door).
  • Metal frame & panel.
  • For Hopping(Rolling) code & Fixed code duplication.
  • Program code and frequency at the same time. No need to adjust the frequency.
  • Support one button self-programming to the receiver.
  • Support up to total 8 channels by pressing different buttons combination.
  • Copied via duplicator HCD-900.
  • Other case colors are available.

Specification:

FrequencyMulti-freq.(272MHz to 434MHz)
Dimension57mmL x 32mmW x 13mmH
Button number4
BatteryCR2032-3V
LED light colorBlue

Packing & MOQ:

Bulk packing18pcs/inner box; 324pcs/CTN; N.W.: 12kgs; G.W.: 12.5kgs.
MOQ324pcs

Support/Download:

Close

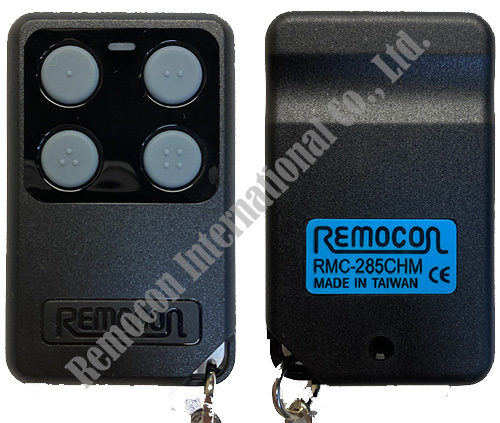

Model No. RMC-285CHM

2-IN-1 Hopping code & C type Fixed code programamble remote control


Type: CHM

Feature & Application:

  • For Hopping(Rolling) code & Fixed code duplication.
  • Support one button self-programming to the receiver.
  • Program code and frequency at the same time. No need to adjust the frequency.
  • Support up to total 8 channels by pressing different buttons combination.
  • Copied via duplicator HCD-900.
  • W/ Grey button.

Specification:

FrequencyMulti-freq.(272MHz to 868MHz)
Dimension60mmL x 37mmW x 10mmH
Button number4
BatteryCR2032-3V
LED light colorOrange

Packing & MOQ:

Bulk packing26pcs/inner box; 468pcs/CTN; N.W.: 13.5kgs; G.W.: 14kgs.
MOQ468pcs

Support/Download:

Close

Model No. RMC-255CHML

Self-learning 2-IN-1 Hopping code & Fixed code (Programmable) remote control


Type: CHML

Feature & Application:

  • Buttons with functional icon( for garage door).
  • Just remove the bottom cover and can access to the Micro USB port easily.
  • For Hopping(Rolling) code & Fixed code duplication.
  • Support remotes with FSK modulation.
  • Support one button self-programming to the receiver.
  • Copy(program) code and frequency at the same time. No need to adjust the frequency.
  • Support up to total 8 channels by pressing different buttons combination.
  • Copy remotes face to face or progrmmed via duplicator HCD-900.

Specification:

FrequencyMulti-freq.(1: 270~378MHz; 2: 403~440MHz; 3: 868.3MHz)
Dimension57mmL x 43mmW x 13mmH
Button number4
BatteryCR2032-3V
LED light colorRed + Green = Orange

Packing & MOQ:

Bulk packing15pcs/inner box; 270pcs/CTN; N.W.:5.5kgs; G.W.: 6kgs.
MOQ270pcs

Support/Download:

Close

Model No. RMC-285CHML

Self-learning 2-IN-1 Hopping code & Fixed code (Programmable) remote control


Type: CHML

Feature & Application:

  • For Hopping(Rolling) code & Fixed code duplication.
  • Support remotes with FSK modulation.
  • Support one button self-programming to the receiver.
  • Copy(program) code and frequency at the same time. No need to adjust the frequency.
  • Support up to total 8 channels by pressing different buttons combination.
  • Copy remotes face to face or progrmmed via duplicator HCD-900.
  • W/ Black button.

Specification:

FrequencyMulti-freq.(1: 270~378MHz; 2: 403~440MHz; 3: 868.3MHz)
Dimension60mmL x 37mmW x 10mmH
Button number4
BatteryCR2032-3V
LED light colorRed + Green = Orange

Packing & MOQ:

Bulk packing 26pcs/inner box; 468pcs/CTN; N.W.: 13.5kgs; G.W.: 14kgs.
MOQ468pcs

Support/Download:

Close

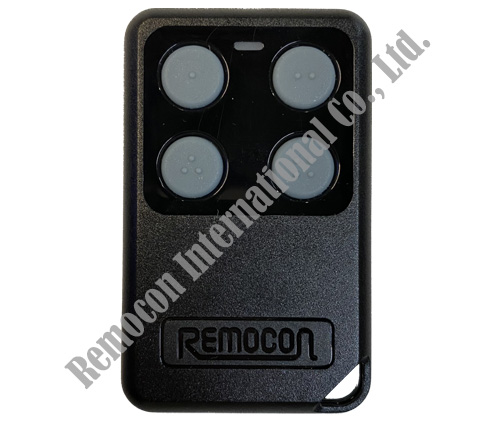

Model No. RMC-285CM

C type Fixed code Programmable remote control


Type: CM

Feature & Application:

  • For fixed code duplication(C type).
  • Program code and frequency at the same time. No need to adjust the frequency.
  • Support up to total 8 channels by pressing different buttons combination.
  • Copied via duplicator HCD-900.
  • W/ Grey button.

Specification:

FrequencyMulti-freq.(250MHz to 434MHz)
Dimension60mmL x 37mmW x 10mmT
Button number4(different shape)
BatteryCR2032-3V
LED light colorOrange

Packing & MOQ:

Bulk packing26pcs/inner box; 468pcs/CTN; N.W.:13.5kgs; G.W.: 14kgs.
MOQ468pcs

Support/Download:

Close

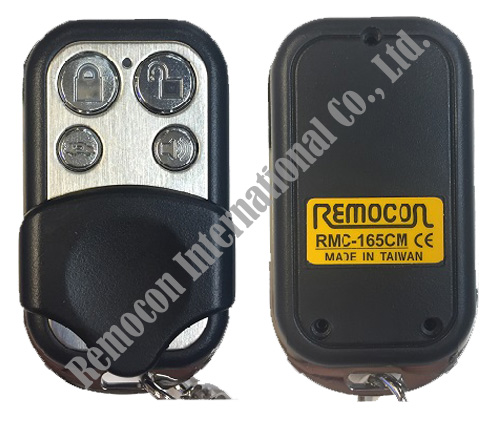

Model No. RMC-165CM

C type Fixed code Programmable remote control


Type: CM

Feature & Application:

  • Sliding cover to prevent the buttons from being pressed accidently.
  • Buttons with functional icon(2 choices: for car & for garage door).
  • Metal frame & panel.
  • For fixed code duplication(C type).
  • Program code and frequency at the same time. No need to adjust the frequency.
  • Support up to total 8 channels by pressing different buttons combination.
  • Copied via duplicator HCD-900.
  • Other case colors are available.

Specification:

FrequencyMulti-freq.(250MHz to 434MHz)
Dimension58mmL x 35mmW x 13mmT
Button number4(different shape)
BatteryCR2032-3V
LED light colorOrange

Packing & MOQ:

Bulk packing18pcs/inner box; 324pcs/CTN; N.W.:12kgs; G.W.: 12.5kgs.
MOQ324pcs

Support/Download:

Close

Model No. RMC-275CM

C type Fixed code Programmable remote control


Type: CM

Feature & Application:

  • Sliding cover to prevent the buttons from being pressed accidently.
  • Buttons with functional icon(2 choices: for car & for garage door).
  • Metal frame & panel.
  • For fixed code duplication(C type).
  • Program code and frequency at the same time. No need to adjust the frequency.
  • Support up to total 8 channels by pressing different buttons combination.
  • Copied via duplicator HCD-900.

Specification:

FrequencyMulti-freq.(250MHz to 434MHz)
Dimension61mmL x 33mmW x 16mmT
Button number4
BatteryCR2032-3V
LED light colorOrange

Packing & MOQ:

Bulk packing18pcs/inner box; 324pcs/CTN; N.W.:11kgs; G.W.: 11.5kgs.
MOQ324pcs

Support/Download:

Close
